Contador de rayos
Alltec’s Lightning Strike Counter (LSC) automatically registers and records local lightning strikes, providing critical data to enhance facility-wide lightning protection security and significantly increase the effectiveness of inspection and maintenance procedures.
Maintenance-Free
Fácil de instalar
Effortless monitoring
Enchanced security
Weather-resistant
Aplicaciones de contador de rayos
System failures happen, and replacing sophisticated equipment is expensive. All too often, the root cause of these network problems remains undetermined because lightning damage can be incredibly subtle, leaving behind undocumented, underlying vulnerabilities.
The Lightning Strike Counter actively tracks the exact number of times a facility or its equipment has suffered a direct strike. This data is essential for assessing system health and determining whether additional layers of security—such as enhanced grounding, surge suppression, or expanded lightning protection—are required.
Installation Guide: You can view typical installation locations in the application maps to the right.
Cómo funciona
Unique in both operation and design, the Lightning Strike Counter utilizes a simple two-wire connection to any metal conductor to detect lightning-induced voltage, meaning conductor dimensions do not impact performance.
-
High Capacity: The unit captures up to 999,999 distinct events before automatically resetting.
-
Self-Powered: Requires no external power supply or internal battery for operation.
-

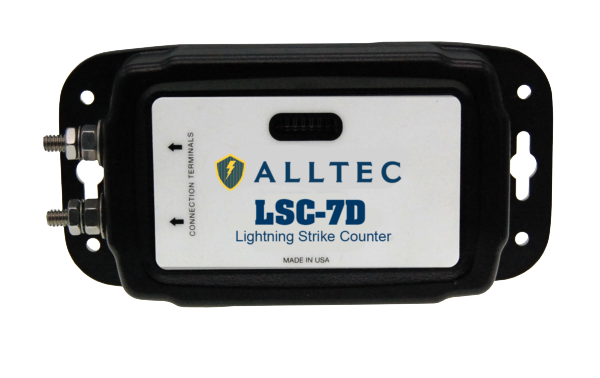

Rugged Enclosure: The LSC-7D is housed in a NEMA 4X / IP66, UV-stabilized polycarbonate enclosure featuring integrated surface-mount flanges.
-
Industrial Rated: The housing is UL 94 V-0 flame-rated and completely suitable for either indoor or outdoor installations, providing robust protection against extreme environmental conditions and workplace hazards.
